Name：Photo-Frame Style Smart Signal Detective Jammer
Model：WF-DJ7
Features：
WF-DJ7 is a Painting Smart Signal Jammer.WF-DJ7 is designed mainly used for indoor cellphone signal detection and shielding, such as meeting rooms,border control units, Border Patrol and Drug Enforcement, Customs, Houses, Churches, Courts, Theaters, Offices,classrooms. checkpoint personnel, Hospitals, Recording Studios, Banks, Contract Tendering Rooms, Testing Facilities, Security Services, Military Units, Secret Services, News Conference Scene, Libraries, Museums,Prisons and so on.

● Photo Frame Style, Noble and Elegant Design.
● Working in continuous dectection and jamming mode make a lower power consumption.
● Shielding function activated smartly. Environmental friendly.
● Support RS232 Com port, controlled by the computer.
● Output power of each band can be adjusted by computer RS232 port as required, and shielding range can be regulated.
● Detective range can be up to 30 grades optional.

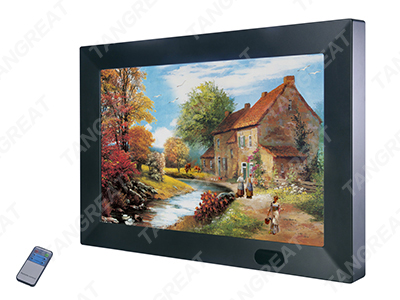

● Infrared remote control available to ON/OFF the device in a range of 0-10M.
● Setting the shielding period.

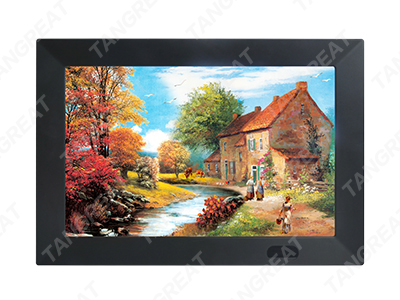

● With internal antennae. Highly covert and wall mounted. It looks completely like a photo frame hung on the wall. Photo frame can be selected as required.
● With LED Light to display device activated and indicate the current time.
● With separate detecting and shielding LED light for each band. (Blue light for Detecting, Red light for shielding.)

Product Details

The current cellphone jammers work with continuous emmission of high power RF interference signals, which is main disadvantage to some degree. Firstly, people are continously exposed to high power RF radition for a long time, which is not environmentally friendly. Secondly, Such jammers will keep interfering the signals even while not in use, which is not smart. Conducting a systematic study, a smart environmental detective cellphone jammer WF-DJ7 is designed based on the above two problems. When the mobile phone is incoming or outgoing, WF-DJ7 interferes the signals between the mobile phone and BTS to prevent the phone from communicating with the outside, otherwise the device will be in sleep mode. WF-DJ7 plays a smart shielding role.]

TECHNICAL SPECIFICATION

American Market
Band	Frequency Band			Average Output Power		Channel Output Power
CDMA800	850-894MHz			35dBm		3 Watt
GSM1900	1920-1990MHz			32dBm		2Watt
3G/CDMA2000	2110-2170MHz			32dBm		2Watt
4G/LTE700	725-770MHz			31dBm		3Watt
4G/LTE2300	2345-2400MHz			31dBm		2Watt
2.4Ghz WiFi, Wlan, Buletooth	2400-2500MHz			31dBm		2Watt
Europe, Middle East Market
Band	Frequency Band			Average Output Power		Channel Output Power
GSM900	925-960MHz			35dBm		3Watt
DCS/GSM1800	1805-1880MHz			32dBm		2Watt
3G/WCDMA	2110-2170MHz			32dBm		2Watt
4G/LTE800	791-820MHz			35dBm		2Watt
4G/LTE2600	2620-2690MHz			31dBm		2Watt
2.4Ghz WiFi, Wlan, Buletooth	2400-2500MHz			31dBm		2Watt
Optional	• Satellite communication systems • Thuraya Iridium Elipso Inmarsat GlobalStar • Aces Odyssey GPS • CDMA450 Cell phone System
Detecting Up Link Frequency bands	American		CDMA800: 824-849MHz GSM1900: 1805-1880MHz 3G/CDMA2000: 1710-1785MHz 4G/LTE700: 698-716MHz 4G/LTE2300: 2345-2400MHz 2.4Ghz WiFi, Wlan, Buletooth: 2400-2500MHz
	Europe		GSM900: 890-915MHz DCS/GSM1800: 1710.2-1784.8MHz 3G/WCDMA: 1920-1980MHz LTE800: 4G/832-862MHz 4G/LTE2600: 2500-2570MHz 2.4Ghz WiFi, Wlan, Buletooth: 2400-2500MHz
Ripple in Band: ≤±1dB			Outband Rejection: 60dBc
Detecting Sensitivity: -85dBm.Support software adjustMent.30 different grades optional.
Output Power: 2-3W/band, total output power up to15W
Detecting Range: 1-25M ( Up to 100m for GSM system)
Jamming Range: Up to 1-50M (Still determined by the local signal strength）
Antennae Type: internal antenna of 3dBi
Power Supply: 110/220AC	Power Consumption: <60W				Working Temperature: -20~+70°C
Dimension: 660x 460 x 78mm	Humidity: 5~80%				Weight: 2.5kg
Complete Accessories: Power Cable, RS232 computer Cable, IR Remote Control
Systematic Function
Programming mode		Detecting-Jamming-Sleeping-Cycling
Shielding time(every time)		0-300 seconds optional, factory default by 100 seconds
Longest continuous shielding time		250 seconds(each second stepping)
Detective Sleep time		0-60seconds optional, factory default by 20seconds.

APPLICATION

WF-DJ7 is designed mainly used for indoor cellphone signal detection and shielding, such as meeting rooms,border control units, Border Patrol and Drug Enforcement, Customs, Houses, Churches, Courts, Theaters, Offices,classrooms. checkpoint personnel, Hospitals, Recording Studios, Banks, Contract Tendering Rooms, Testing Facilities, Security Services, Military Units, Secret Services, News Conference Scene, Libraries, Museums,Prisons and so on.

Note:All Bomb Jammers,IED Jammers,RF Signal Jammer and RCIED Jammers,including cell phone jammers and mobile phone jamming devices are sold for governmental, law enforcement and military users only.
