  • Name:5 Bands Waterproof High Power Prison Jammers
  • Model:TG-101ML
  • Features:High power Prison Jamming System TG-101ML is developed specially for prisons and other large, sensitive facilities, such as military installations and government compounds.

    ●  Each unit can jam up to five frequency bands simultaneously.
    ●  For the cellular phone jamming, only making the interference to the downlink bands,never to the uplink and make sure BTS normal running.
    ●  Special Waterproof and solid housing for all weather protection.
    ●  Continuous operation, even in hot climates, with no time limit.
    ●  Heat sink designing combing with the fans to make system in a cooling status.
    ●  Secure design to avoid sabotage.
    ●  (VSWR) circuit protection to ensure system will not burn out in case of antenna short circuiting or disconnection.
    ●  Antenna type options, directional or omni-directional antennas option.
    ●  Selection of antennas to provide more flexibility regarding jamming coverage.
    ●  UPS and battery backup in case of mains power failure.
Product Details

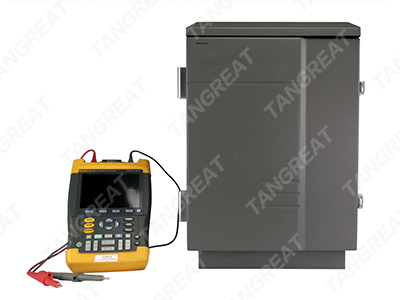

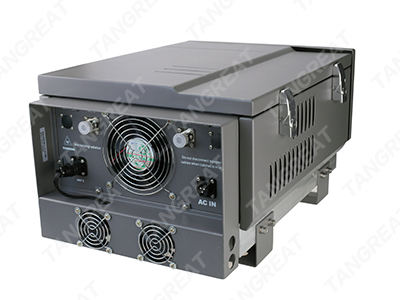

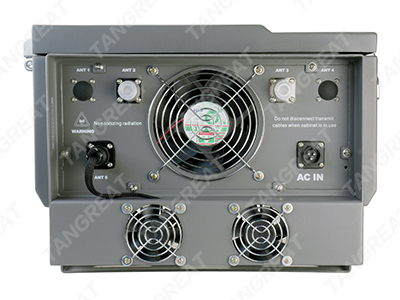

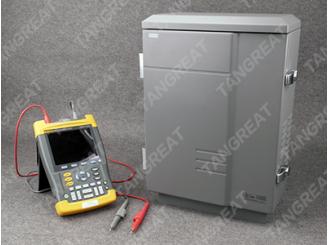

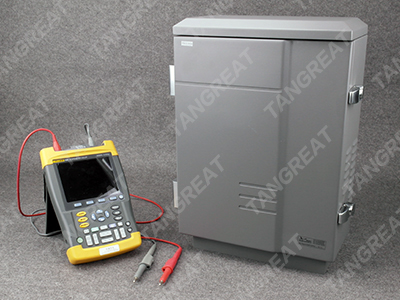

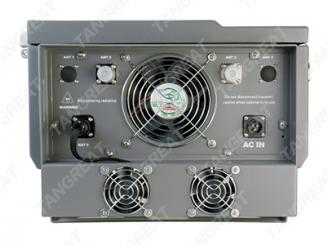

TG-101ML is constructed inside a special metal enclosure, incorporating an efficient "smart active" cooling system with incoming air filters, which enables the system to operate 365 days/24 Hours/7days continuously even in hot weather. Its secure design ensures that the prison inmates and unauthorized prison personnel cannot tamper with the safe and continuous operation of the system.

Number of Frequency bands: 3 bands, 4 bands, 5 bands
All Frequency, Up to 5Bands can be chosen:
Cellphone Standards: CDMA450(460-470MHz), CDMA450(460-470MHz),  CDMA800/GSM850(851-894MHz), iDEN(869-894MHz), GSM900(925-960MHz), DCS/GSM1800(1805-1880MHz), PCS/GSM1900(1930-1990MHz), 3G/WCDMA/CDMA2000(2110-2170MHz), 4G/LTE700(American), 4G/LTE800(Europe), 4G/LTE2.6GHz,4G-LTE2.3GHz
Computer Communication Standards: Wlan, 2.4GHz, WiFi, Bluetooth
Satellite Communication Systems: GlobalStar, GPS,Thuraya (1520-1580MHz)
Output Power: Up to 15 Watt/band
Total Power: Max: 45~75Watt
Power Consumption: Max:300~350VA
Power Supply voltage: 230VAC/110VAC, 24-27VDC
Housing: Metal Enclosure
Device Size: 500*375*235mm
Total System Weight(With antennae): Approx.: 18~20kg
Humidity: 5%-80%
Operational Temperature:  -40 °C ~ +65 °C
Cooling System: Active smart with integrated incoming air filter
Waterproof level: IP55

Back to Prison Cell Phone Signal Jammer for more choices.

Prisons and other large sensitive locations such as military or governmental compounds. It can also be used in Oil and Gas Storage Facilities and fields,Security Services, Military Units, Secret Services, Museums, Border Patrol and
Drug Enforcement, Customs, etc.

Note: All Bomb Jammers,IED Jammers,RF Signal Jammer and RCIED Jammers, including cell phone jammers and mobile phone jamming devices are sold for governmental, law enforcement and military users only.
